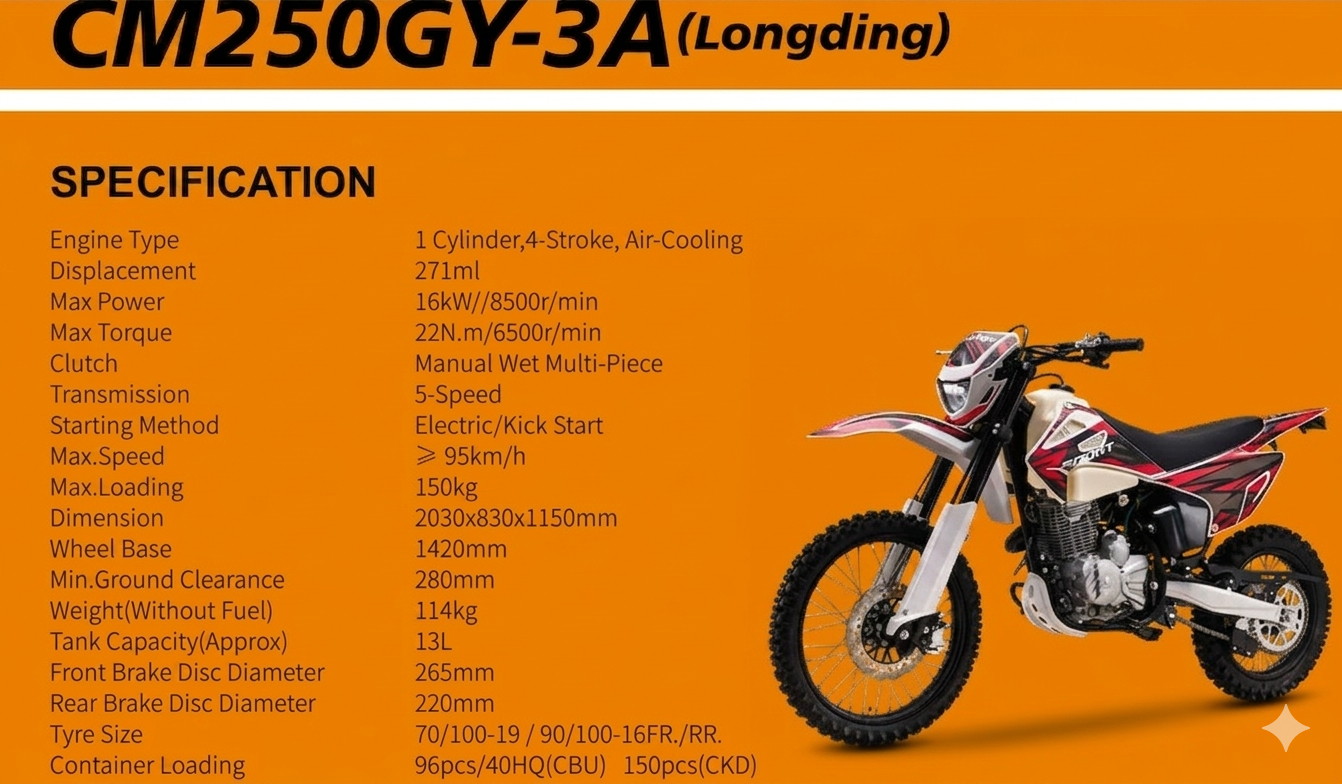

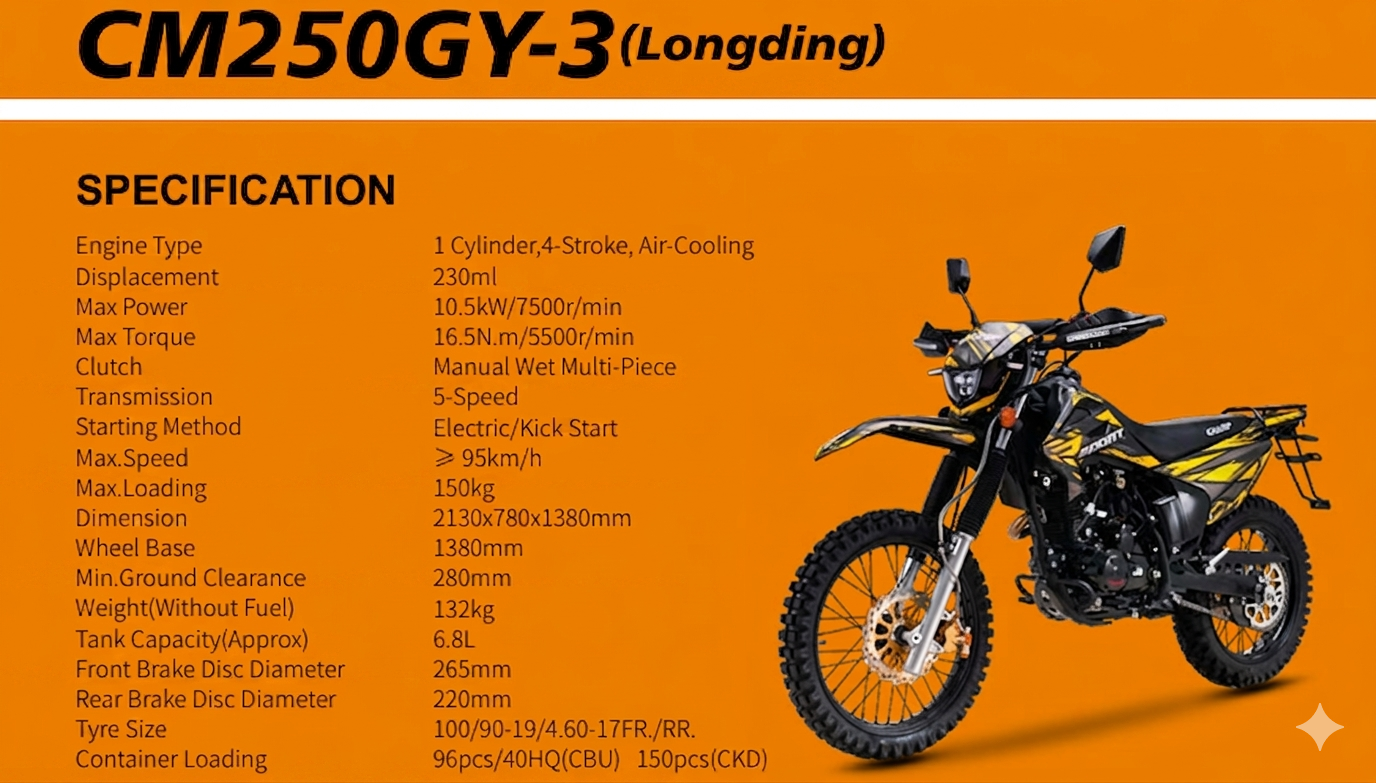

SPECIFICATION

Engine Type: 1 Cylinder,4-Stroke, Air-Cooling

Displacement: 230ml/ 271ml

Max Power: 10.5kW/7500r/min/ 16kW//8500r/min

Max Torque: 16.5N.m/5500r/min/ 22N.m/6500r/min

Clutch: Manual Wet Multi-Piece

Transmission: 5-Speed

Starting Method: Electric/Kick Start

Max.Speed: ≥95km/h

Max.Loading: 150kg

Dimension: 2130x780x1380mm/ 2030x830x1150mm

Wheelbase: 1380mm/ 1420mm

Min.Ground: 280mm

Clearance Weight (Without Fuel): 132kg /114kg

Tank Capacity (Approx): 6.8L/ 13L

Front Brake Disc Diameter: 265mm

Rear Brake Disc Diameter: 220mm

Tire Size: 100/90-19/4.60-17FR./RR. / 70/100-19 / 90/100-16FR./RR.

Loading Qty: 96pcs/40HQ(CBU) 150pcs (CKD)
