Core Specifications

• Voltage and Capacity: A 51.2V nominal voltage is standard for 16-cell series LiFePO4 configurations. A 5.1kWh capacity is often chosen as a "base module" size, allowing for easy expansion by paralleling multiple units to meet higher household energy demands.

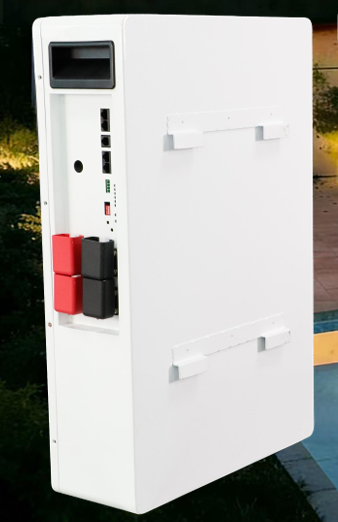

• Wall-Mounted Form Factor: Unlike rack-mounted or bulky floor-standing units, wall-mounted batteries are designed for ease of installation in garages, utility rooms, or outdoor-rated enclosures.

• Safety and Longevity: These units incorporate advanced Battery Management Systems (BMS) to monitor cell temperature, voltage, and current, ensuring safety and optimizing the cycle life (typically reaching 6,000+ cycles at 80% Depth of Discharge).

Installation Considerations

• Weight: Even though these units are compact, a 5.1kWh battery can weigh between 50kg and 70kg. Ensure the mounting wall is structurally capable of supporting this weight.

• Clearance: Follow the manufacturer’s guidelines for spacing around the unit to ensure adequate ventilation and access to communication ports.

• Location: While many are designed for indoor use, always check the IP (Ingress Protection) rating if you are considering installation in a garage or semi-exposed area to ensure it meets your local environmental requirements.
